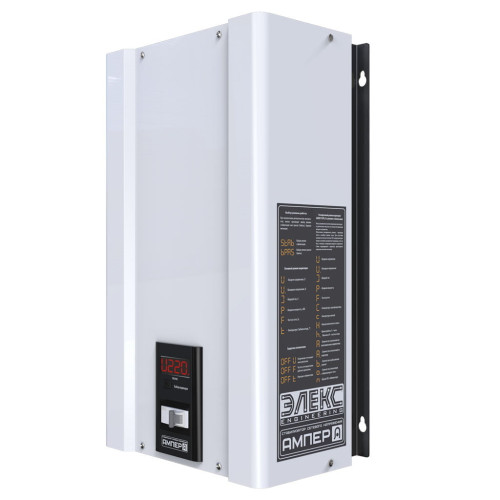

Single-phase voltage stabilizer AMPERE U 9-1/50 v2.0

Name: Single-phase voltage stabilizer AMPERE U 9-1/50 v2.0
Brand: ЭЛЕКС Engineering
Availability: InStock

Виробник: ЭЛЕКС Engineering

Модель: 213en

Відгуки: (0)

Є в наявності

0 грн.

Знайшли даний товар дешевше?

Характеристики: (дивитися всі)

Дисплей

Да

Категория

Single phase stabilizers

Количество ступеней (погрешность, %)

()

Количество фаз

Дополнительные характеристики

Скорость срабатывания

Single-phase voltage stabilizer AMPERE U 9-1/50 v2.0

Single-phase voltage stabilizer "Ampere 9" is designed to operate in electrical networks with voltage fluctuations from 160 to 260V. In this range, the device is guaranteed to deliver a voltage at the output within 220 ± 4.5%, which is ensured through the use of 9 stabilization steps. The lineup of all listed Amperes in terms of power can be 2.2, 3.5, 5.5, 7, 9, 11, 14 and 18 kW, which corresponds to an operating current of 10, 16, 25, 32, 40, 50, 63 and 80A, respectively. The features of this stabilizer include silent operation due to the use of triacs (thyristors) as power switches and the presence of electronic transit (bypass). It is recommended to install and operate the Ampere stabilizer in dry and heated rooms. It is recommended to mount the wall in a vertical position (fans upwards), leaving 10-15cm at the top and bottom for cooling. The connection is made to the existing wiring through the terminal block.

Operating current, A	50
Rated power, kVA / kW	11.0
Number of stabilization steps	9
Key type	thyristor
The efficiency of the stabilizer is not lower,%	98
Active power consumption at idle, no more, W	35
Nominal output voltage, V	220
Minimum operating input voltage, V	135
Minimum operating input voltage in bypass mode, V	120
Maximum operating input voltage in bypass mode, V	265
Maximum input operating voltage, V	285
Stabilization accuracy,%	4.5
Response time to changes in input voltage, ms	20
Power supply frequency, Hz	45-65
Input Current and Apparent Power Measurement	yes
Short-circuit and overload current limitation	input circuit breaker with B-characteristic electromagnetic protection
Electronic Bypass	yes
Network and Stabilizer Condition Analyzer	yes
Duplicate overvoltage protection	yes
Microcontroller control	yes
Input choke	yes
Output choke	no
Overheating protection	yes
Minimum cable cross-section for connection, mm²	10
Maximum cross-section of cable conductors for connection, mm²	40
Forced Cooling	two speed fan
Overall dimensions, mm, no more	530х295х175
Weight, kg, no more	26
Warranty, years	7

]]>

ЗАГАЛЬНІ

Дисплей

Да

Стабілізатори

Категория

Single phase stabilizers

Количество ступеней (погрешность, %)

()

Количество фаз

Дополнительные характеристики

Скорость срабатывания

Исполнение

Навесные

Размеры (мм)

0 x 0 x 0

Страна-производитель товара

Украина
