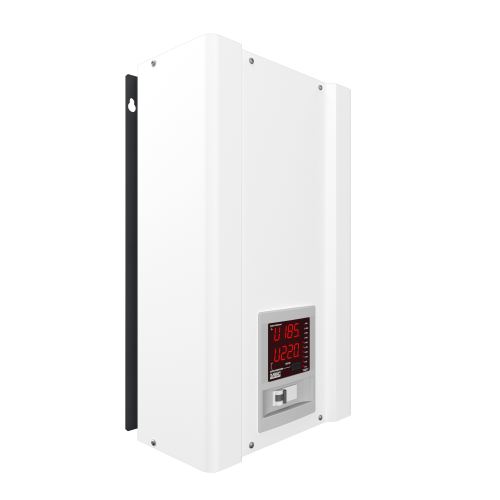

Single-phase voltage stabilizer AMPERE-R U 16-1/32 v2.1

Single-phase voltage stabilizer Amper-R U 16-1/32 v2.1 (extended) is designed to operate in electrical networks with voltage fluctuations from 120 to 275V. In this range, the device is guaranteed to output a voltage within 220 ± 3.5%, which is ensured through the use of 16 stabilization steps. The rated power of this model is 7 kW, which corresponds to the operating current of the 32A circuit breaker on it. The features of this stabilizer include a double LED screen, a linear loading strip, the presence of electronic transit (bypass), a convenient location of the terminal block for connection on the back of the case, silent operation due to the use of triacs as power switches. The stabilizer Amper-R U 16-1/32 v2.1 has the ability to manually adjust the lower shutdown threshold (60-135V). This function is in demand for a load with high inrush currents, at startup of which a strong voltage drop and emergency shutdown of the stabilizer are possible. When this option is activated, the stabilizer will make it possible to start any engine or pump within a minute, even if the voltage drops to 60V in the network. It is recommended to install and operate the Amper-R U 16-1/32 v2.1 stabilizer in dry and heated rooms. It is recommended to mount the wall in a vertical position (fans up), leaving 10-15 cm at the top and bottom for cooling. The connection is made to the existing wiring through the terminal block.
